If the wide range of standard cylinders cannot be used to resolve our customers’ problems, our engineering department produces a custom design of the cylinder that will meet the user’s needs.
Double-acting cylinder with safety nut and tilting head
Thrust: 600 tonnes, stroke 100mm.
Sector of activity: Mining in Mauritania
Double-acting cylinder with tilting head
Thrust 1000 tonnes, stroke 200mm.
Sector of activity: Geotechnics
Double-acting cylinder with balancing valve flanged on cylinder
Thrust 30 tonnes, stroke 200mm.
Sector of activity: Heavy-duty handling

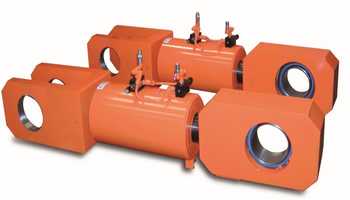

Double-acting cylinders with balancing valves, clevis and spherical mounting
Thrust and traction force 200 tonnes, stroke 200mm.
Sector of activity: Heavy-duty handling
Double-acting cylinder with hollow piston, central hole diameter 250mm
Thrust 1500 tonnes, stroke 250mm.
Sector of activity: Geotechnics

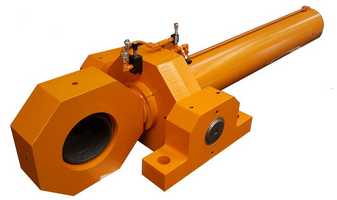

Plunger type single-acting cylinder with fastening using journal flange, bronze rings and bearings. Spherical mounting at piston head.
Thrust: 350 tonnes, stroke 1700mm.
Sector of activity: Offshore
Light allow single-acting cylinders with tilting head
Thrust: 25 tonnes, stroke 450mm.
Mounted on base plate equipped with retractable balls.
Sector of activity: Maintenance Railways

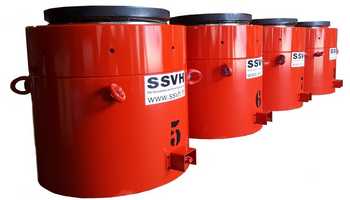

Single-acting cylinder with safety nut and +/- 7° tilting head
Thrust: 720 tonnes, stroke 50mm
Sector of activity: Public works – Civil engineering works
Single-acting cylinder with safety nut and +/- 3° tilting head
Thrust: 2200 tonnes, stroke 180mm.
Sector of activity: Public works – Civil engineering works
