Description

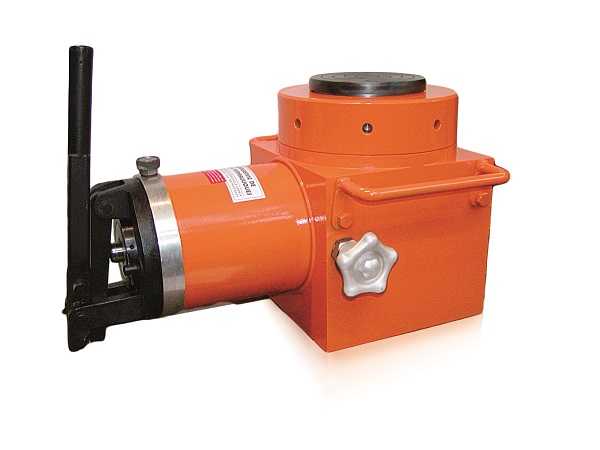

Description of the MPI steel cylinder
Sturdy, reliable, easy-to-handle and autonomous, MOKLOS MPI steel pumps are ideal for mobile uses, in workshops or on worksites. The broad power and stroke range makes them suitable for many needs. The braking valve makes it possible to control the load on descent. Their hydraulic pump with two automatic flow rates enables speedy contact with the load and a reasonable force on the lever in the pressure rise phase. The parts are adjusted to the nearest micron and tightness is guaranteed with an oil film, with no seal, enhancing durability further. In the S version, the threaded piston is equipped with a safety nut enabling mechanical securing of the load in position.

Specifications of the steel cylinder with built-in pump

• Thrust 5 to 300 tonnes

• Stroke 40 to 350 mm

• Load return

• Smooth or threaded piston with safety nut (S version)

• Guide and stop ring

• Flat detachable piston head

• Built-in pump with automatic dual flow rate with integrated pressure limiter

• Pumping lever with 360° range

• Pressure gauge connector
