Description

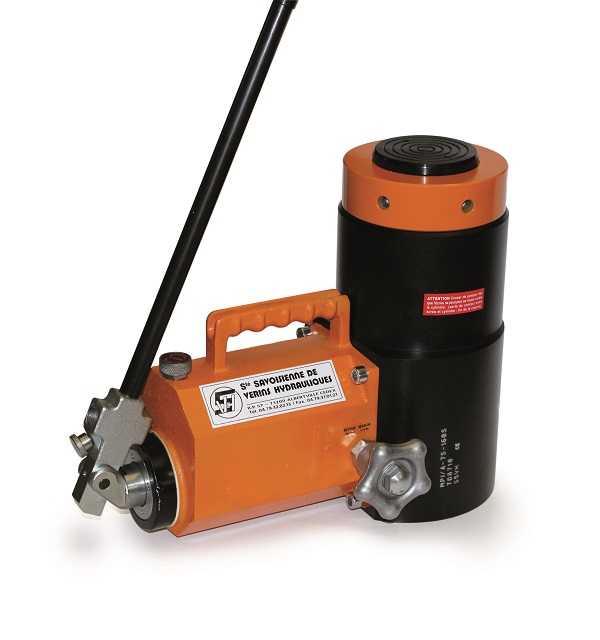

Description of the spring return cylinder MPI.A
Sturdy, reliable, easy-to-handle and autonomous, MOKLOS MPI.A light alloy pumps are ideal for mobile uses, in workshops or on worksites. The braking valve makes it possible to control the load during descent and the unladen piston is retracted by the built-in return spring. Their hydraulic pump with two automatic flow rates enables speedy contact with the load and a reasonable force on the lever in the pressure rise phase. The parts are adjusted to the nearest micron and tightness is guaranteed with an oil film, with no seal, to enhance durability further. In the S version, the threaded piston is equipped with a safety nut enabling mechanical securing of the load in position.

Specifications of the MPI.A built-in pump spring return cylinder

• Thrust 10 to 100 tonnes

• Stroke 100 to 220 mm

• Piston return using built-in spring

• Smooth or threaded piston with safety nut (S version)

• Guide and full load stop ring

• Threaded and detachable flat piston head made of treated steel

• Built-in pump with automatic dual flow rate with internal pressure limiter

• Pumping lever with 360° range

• Pressure gauge connector on tank body
