Description

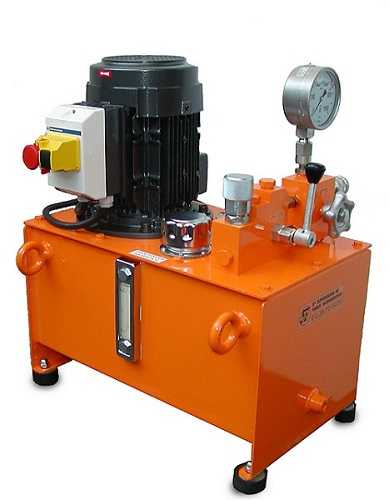

Specifications of the EB.30 hydraulic system with electric motor

• 3 kW three-phase 220/380V 50 Hz electric motor

• Pressure of 700 bar in continuous operation

• Automatic dual-flow rate pumps:
– 11L/min in approach mode up to 100 bar
– 2.2L/min in operation up to 700 bar

• Effective oil capacity 30 to 100 litres

• Adjustable external pressure limiter

• Pressure gauge

• 3/8 NPT outlet oil connector
