Description

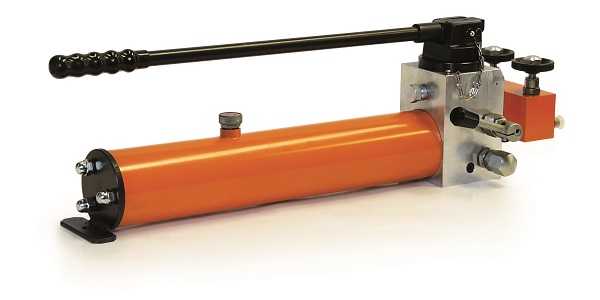

Description of the single acting hand pump PH1.7-3000
Small, lightweight and easy-to-handle, designed for the supply of very high-pressure hydraulic systems, PH1,7 hand pumps are widely used for oil injection disassembly of couplings, hubs and other assemblies.
Specifications of the PH1.7-3000 1-speed hand pump
• Working pressure 1500 to 3000 bar
• Effective tank capacity 1.7 litre
• Machined light alloy pump unit
• One-speed pump
• Braking discharge valve
• External pressure limiter
• Pressure gauge connector
• Stabilisation lug
• 1/2 BSP oil connector (sealing on cone)
